Dischi Freno Ventilati Anteriori Toyota 70 dal 1990 – DBA
Dischi Freno Ventilati Anteriori Toyota 70 dal 1990 – DBA. I Dischi Freno Ventilati Anteriori DBA sono progettati per offrire maggiore resistenza al calore e prestazioni superiori su Toyota Land Cruiser Serie 70 dal 1990 in poi.
Specifiche Tecniche
-
Diametro disco: 302 mm
-
Design ventilazione: Kangaroo Paw
-
Numero fori / Interasse: 6×139.7
-
Diametro interno (centraggio): 100 mm
-
Spessore: 20 mm
-
Altezza: 49 mm

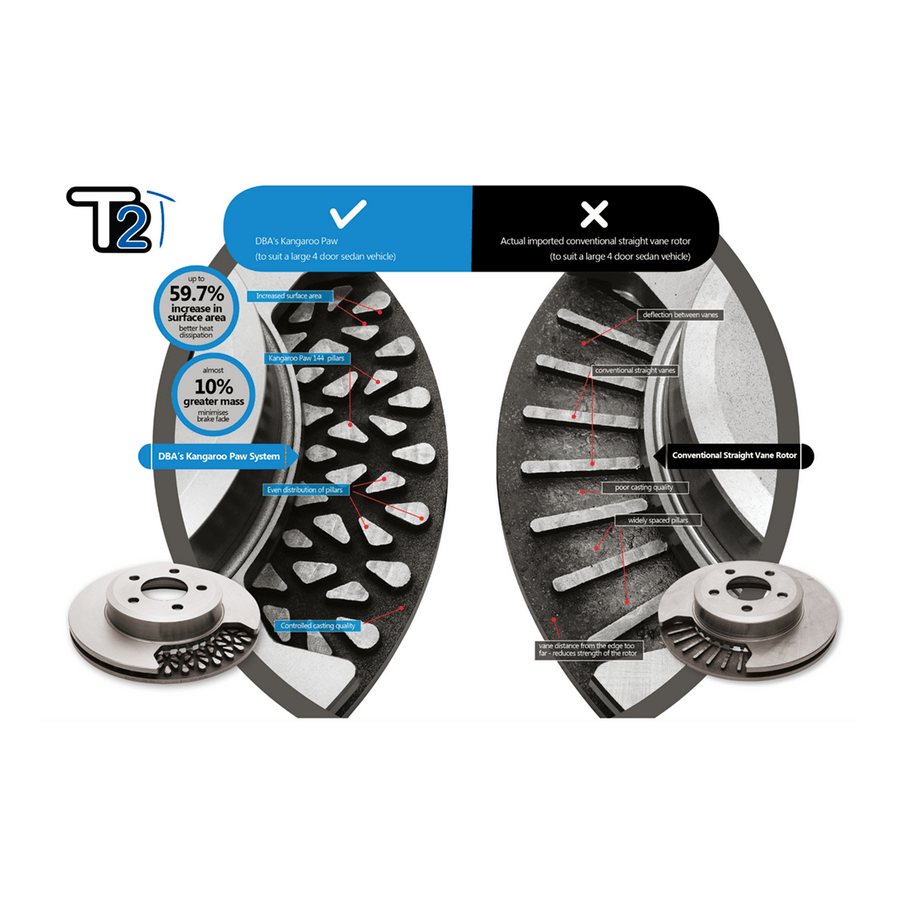

Tecnologia Kangaroo Paw
L’esclusivo sistema di ventilazione interna Kangaroo Paw di DBA utilizza pilastri a forma di diamante per:
-
Migliorare la dissipazione del calore
-
Ridurre il rischio di fading
-
Aumentare la durata del disco
-
Garantire maggiore uniformità di raffreddamento
Ideali per uso gravoso, veicoli da lavoro e preparazioni off-road.
Compatibiltà
|
Make
|
Model
|
Year
|
Variant
|
Category
|
Note
|
Details
|
Parameter
|
|---|---|---|---|---|---|---|---|
|
TOYOTA
|
Hi-Lux LN105
|
1989-1997
|
2.4 D (1989-1997)
|
Front
|
Brake Pads: DB1149
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Hi-Lux YN106
|
1989-1997
|
2.2 (1989-1997)
|
Front
|
Brake Pads: DB1149
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Hilux Surf LN106
|
1988-1997
|
2.8 D (1988-1997)
|
Front
|
Brake Pads: DB1149
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1984-1985
|
2.4 D (LJ70) 53 kW (1984-1985)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1984-1993
|
2.4 (RJ70, RJ73) 77 kW (1984-1993)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1984-1993
|
2.4 (RJ70, RJ73, RJ70RV) 81 kW (1984-1993)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1984-1996
|
3.4 D (BJ70, BJ73, BJ75) 70 kW (1984-1996)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1985-1986
|
3.4 TD (BJ71, BJ74) 91 kW (1985-1986)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1985-1990
|
2.4 TD (LJ70) 63 kW (1985-1990)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1988-1996
|
2.4 (RJ70, RJ73) 84 kW (1988-1996)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1990-1993
|
2.4 TD (LJ70) 66 kW (1990-1993)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1990-1994
|
3.5 D 4×4 (PZJ70) 85 kW (1990-1994)
|
Front
|
Disc Diameter [mm]: 302
|
||
|
TOYOTA
|
Landcruiser 70 series
|
1990-1999
|
4.2 D (HZJ70, HZJ73, HZJ75) 96 kW (1990-1999)
|
Front
|
Brake Pads: DB1149
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1990-1999
|
4.2 D (HZJ77) 96 kW (1990 -1999)
|
Front
|
Disc Diameter [mm]: 302
|
||
|
TOYOTA
|
Landcruiser 70 series
|
1990-2001
|
4.2 D 4×4 (HZJ75) 123 kW (1990-2001)
|
Front
|
Brake Pads: DB1149
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1992-1999
|
4.5 4×4 (FZJ75, FZJ75RV) 158 kW (1992-1999)
|
Front
|
Brake Pads: DB1149
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser 70 series
|
1993-1996
|
3.0 TD (KZJ78) 92 kW (1993-1996)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser BJ60
|
1981-1984
|
3.4 D (1981-1984)
|
Front
|
Brake Caliper: Sumitomo
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
TOYOTA
|
Landcruiser FJ60
|
1981-1984
|
4.2 (1981-1984)
|
Front
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
|
|
TOYOTA
|
Landcruiser HJ60
|
1981-1991
|
4.0 D (1981-1991)
|
Front
|
Brake Caliper: Sumitomo
|
Brake Pads: DB288
|
Disc Diameter [mm]: 302
|
